New Right-of-Ways on the New Boston & Donnels Creek RR, 2021

This is a follow-up to our article "Christmas Preparations and Operations 2020" - In preparation for a few "holiday season" visitors, we added temporary Right-of-Ways ("ROWs") to the new platform and decorated the train shed for Christmas. We also set out two Lionel RTP trains that the kids could run themselves.

My plan from the start was to have a single big loop connecting the two platforms, "bridging" the waterfall like the higher loops. But that wasn't going to happen late last fall. Instead, I set out two temporary loops on the new platform.

The photo to the right shows the loops before I spread pea gravel over the tarp to give a slightly more finished look.

The drawing below right shows my plan for the big loop once the ROW went through the shed and across the waterfall. Initially, it looked a bit different, but I took a bunch of odds and ends track outside and kept fastening them together to get the optimum plan.

The new Right-of-Way would use only 10'-diameter or larger curves, so I could run longer equipment. Also, I wanted a passing track that would store a fairly long train - as it turns out the passing track you see at the top of the page will hold a train about 18 feet long. (I had a similar "passing track" on my old railroad that I wound up never using because the turnouts were out of reach and in the habit of not throwing all the way, even with the best switch mechanisms).

I also wanted to add some turnouts (switches) to have operational capabilities (as well as excuses for "industries"). Considerations included:

• Each turnout would have the straight edge on the mainline, not the curve. Folks who "sneak in" turnouts by putting the curved leg on the mainline have a much higher rate of derailment - locomotives entering the curve from the "single" end may have enough centrifugal force to ride up onto the frog instead of staying down on the rails.

• Because space was really more limited than you'd expect, putting the straight edge on the mainline allowed me to use R1 (48"-radius) turnouts in the tight spaces.

• All of my turnouts would be manual and within easy reach of the outside edge of the platform. Experiments with remote-controlled turnouts early in my garden railroading efforts have led me to consider reliability over convenience. (For a time, my "switching" mantra was "Throw the switch; move the points. Throw the switch; move the points.") I have friends who swear their remote turnouts are all 100% reliable, so maybe I'm just addicted to "belt-and-suspenders" approaches.

• To be honest some of my wide-radius turnouts have seen better days. At least one of them is a "placeholder" for now.

Holes

The track would have to go through the shed, which means two more holes in the shed.

From the outside I drilled holes so I would know where to cut. Then I took a reciprocating saw to the inside for a few minutes of vibrating like a cartoon character who has been hit by a mallet.

Guestimating the Bridge Location

I screwed the Aristo track joiners together all the way around to be certain I wasn't over- or under-estimating how much room the track would take once it was installed.

By running one of the 5' pieces of track out over open space, I figured out where the "bridge" would go. I started the waterfall to make certain the track would cross far enough not to get the train drenched or knocked off the track.

Three turnouts eventually went in about where you see the buildings in the photo - this was an early test.

There followed a trip for lumber, buying several pieces of ground-rated 2"x6" that would become the "roadbed" supporting the track

Installing Roadbed

I started out by cutting trapezoids to go underneath the 10'-diameter curve pieces. Each piece has a 15-degree cut on the end, matching the alignment of the rails at the end of the track. (For more information on how we arrived at that figure and templates you can use, check out our article "Simple Wooden Roadbed."

After cutting the fourteen trapezoids I would need for the big mainline, I began skootching the gravel out of the way and laying them under the curves.

When I started this part of the process, my plan was to remove the gravel, but a neighbor asked if I could run trains for her friends' and relatives' kids who would be doing an Easter Egg hunt that weekend. So I figured, I'd leave the gravel in place if I could, since it looks better than black tarp.

At the same time, it did move up my timetable. Nothing like tearing up most of your track and then learning that you'll be having visitors in a few days. :-)

The inner, inner loop in the photo was removed later - it just made everything too busy. I retained the other inner loop. It's based on 5'-diameter curves and will probably host a trolley or some such serving the town that will go there.

Then the time came to run the track through the shed. Though the shed is only about 6' wide, the ROW was straight coming out of the shed for about two feet in each direction. So I cut a 2"x6"x12' board down to 10', brushed the gravel out of the way by both ends, and fastened the board in place.

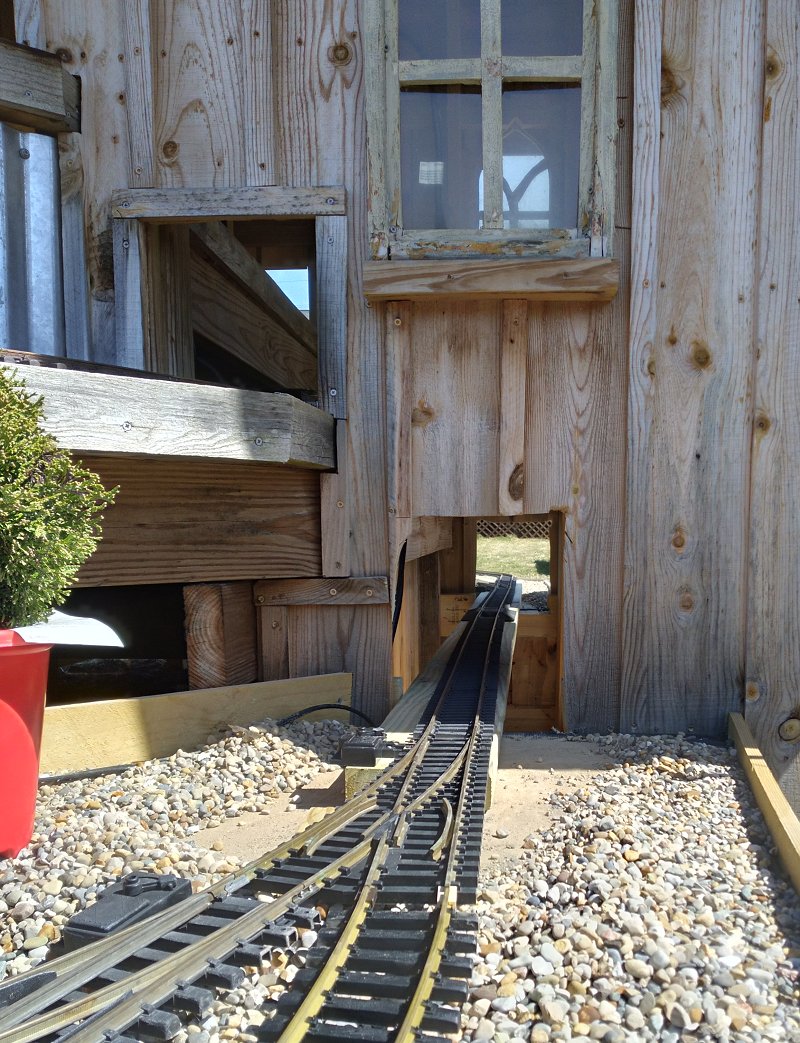

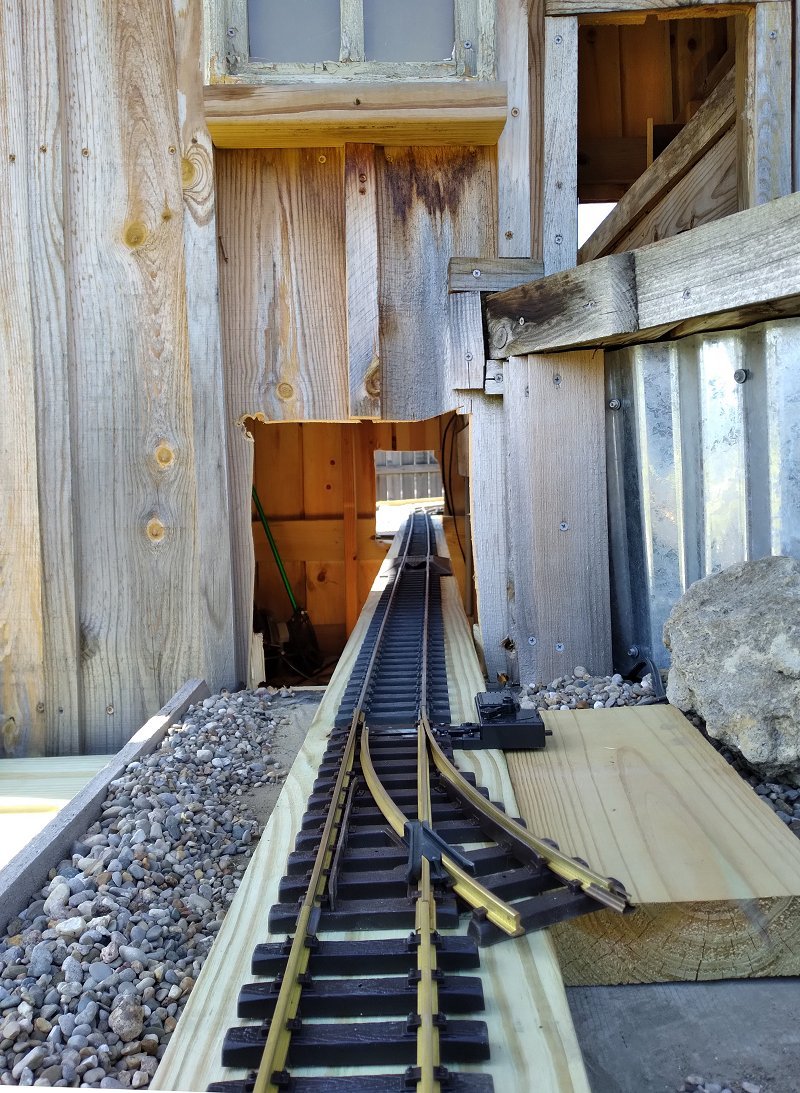

The photos below show the lower platform's passage through the train shed from the east side and from the west side respectively.

Why did I fasten that board down first? Because its location is the least "negotiable" of all the roadbed pieces. All the other track placement depends on exactly where the track comes out of the train shed.

Afterwards, I set out the rest of the roadbed for the east side of the platform, and cut a piece for where I figured the bridge would need to be. To stretch that board across, I had to remove the trim pieces that were holding back the gravel along the edges.

I didn't fasten the new "bridge" down until I'd put roadbed under all the 10' curves on the west platform (to the right in this photo). Again, I wanted to make certain of exactly where the track was going to go before I did anything permanent.

In the interest of full disclosure, the pieces did not all align quite as I thought they should until I replaced a 2' piece of track near the bridge with a non-functioning wide-radius turnout (the straight edge along the mainline, of course). It was a bit shorter, and gave the track plan the "give" it needed to fit where I wanted it to go. So one of the sidings in my drawing above now goes in the opposite direction from the way I had it drawn, and it won't actually function until I replace or fix the turnout. Yes, I could have just sawn a piece of track a bit shorter, but then I would have had to use third-party track joiners, and I'm not a fan of most of them. Don't tell my friends who are sticklers for operations about the non-working turnout.

Then I recut and restored the trim pieces I had had to move, so I could spread the gravel back on those corners.

After I cut and installed the roadbed for the rest of the mainline, I set my circular saw for about 1 5/8" and trimmed the corners a little. Due to slightly uneven depths of the boards, this gouged the decking in a few places and failed to cut quite all the way through in others.

Neither was really a problem - the decking is ground-rated after all, and the bits that weren't cut all the way through were easily pulled off.

Then I cut and installed the roadbed for the two inner loops that remain. The photo to the right shows the east platform after the roadbed was installed and the gravel was replaced.

I haven't installed the sidings yet, because I wouldn't exactly be doing operations for the Easter Egg hunters who would be visiting in a few days. I also spread the gravel back out to give the platforms a more finished look than exposed black tarp.

The buildings you see are still North States bird feeders I put out during the winter to keep the railroad from looking naked. Most of them are weighed down with gravel in the part that is supposed to hold bird feed. The ones that aren't occasionally blow away, especially in windy Spring storms - another reason to keep the "good buildings" inside until warmer weather.

The photo to the left below shows the inner loop on the west platform after the roadbed has been screwed into place. This loop has two 1' straights, four 5'-diameter curves, and eight 4'-diameter curves. The 5' curve pieces are attached to the straight pieces and act (somewhat) as "easements" into the smaller curves. To cut the roadbed, I had to cut two different lengths of "trapezoids."

The photo to the right below shows the same area after the roadbed for the inner loop has been finished and the corners trimmed.

Getting Ready for Visitors

Rounding out the train appearances were an LGB Porter hauling three HLW mini-gondolas and a silver Eggliner. (You HAVE to run an Eggliner for Easter visitors, don't you?)

There were many delighted visitors, who are not shown on this page because I was too busy to take photos. All the children were very well behaved, and all of the parents and grandparents who brought them over were very responsible.

Five running trains and a four-level waterfall captured the interest of the adults as well as the kids. And, unlike our scheduled open railroads, we didn't have to provide snacks, as the Easter egg hunt across the street covered that base.

Future Efforts

Next step, though, is cleaning out the pond. That includes gradually flushing the old water out, cleaning the filter, netting out leaves that settled on the bottom during the winter, raising the "shallow-water" plants to their shelves, and treating the new water against algae bloom (which used to happen in June and now is happening in March - go figure). The water lily is already sending up leaves, so spring is on its way.

Keep in Touch

A decade ago, at our old house, a friend from the east coast used to visit his parents each Easter, and he would often ask if he could stop by and see the railroad running. Sadly, I never had the railroad ready for viewers until about Memorial Day; the maintenance required to recover from winter ground shifts, weed creep, etc. was too great. So, being able to run trains for visitors before Easter this year is especially rewarding. In fact, with our current infrastructure, there's no reason we couldn't run trains any day of the year that that the weather permits.

If you're headed toward or past Springfield, Ohio, please let me know, and I'll see if we can work out a quick visit.

Finally, please let us know about your ongoing projects. Ask questions, send corrections, suggest article ideas, send photos, whatever you think will help you or your fellow railroaders. In the meantime, enjoy your trains, and especially enjoy any time you have with your family in the coming weeks,

Paul Race

FamilyGardenTrains.com
