Tunnel Framing on the New Boston and Donnels Creek, Part 2

This is a follow-up to our article "Tunnel Framing on the New Boston and Donnels Creek, Part 1". In that article, we planned and built two wooden boxes that would become the framework for two short tunnels on our raised platform railroad. That effort was made a little more complicated by the fact it was a "retrofit." I hadn't planned for them at first, so getting them in place took some finangling.

This article describes our efforts to "dirtscape" those boxes to make them look more natural.

The photo to the right shows some stones laid out to begin layering the "mountain" on the east platform.

For the parts near the tunnel openings, I tried to choose stones that could get close to the openings without interfering with passing trains. In most cases that meant they had to be narrow on one end.

I didn't attach the portals before I stacked the stone because they are foam and could be damaged by my clumbsiness. In fact, at the time of this writing, I still haven't attached them because of other issues.

As I mentioned in the previous article, finding stone to stack isn't all that hard in the Springfield, Ohio area, because chunks of limestone occcur naturally in the soil, and they emerge whenever a hole is dug for a foundation, basement, or swimming pool. In fact, almost all of the stone I used to dirtscape the first two platforms of my railroad was dug out of my own yard.

Because the limestone is sedimentary, it shears naturally into relatively flat shapes. But the edges tend to be random and irregular, so you have to have a stack to work from as you build - you can almost "link" them together if you choose carefully. The stones I used came from the nearby property of a landscaper we have done business with.

Again, if you can't get stackable rocks easily where you live, you should know that folks all over the world have had success making their own "rocky hillsides" using poured concrete veneer as shown in this article.

Room for Plantings

But I also wanted to add more actual trees to my railroad. I had a good supply of dwarf and miniature conifers onhand. Some of them were trees I bought to use for display in our Christmas-themed open RRs, and were getting "long in the tooth." Several were bought when our Home Depot closed out their "live Christmas trees" in February, 2021. I was especially pleased to get a few Hetz Midget Arborvitae and two tiny "Jean's Dilly" Arborvitae, both trees that have become hard to come by locally unless you want to pay very high prices.

To incorporate these plantings, my stacked stone "mountains" would have to have at least a few inches open at the top. So I started layering the stones several inches out from there. A layer of stone and a layer of dirt. A layer of stone and a layer of dirt.

When the stack of stones and dirt was high enough to consider planting little trees, I chose two to try, a Mugo Pine and a Hetz Midget Arborvitae. I had had good luck with both varieties in my previous railroad.

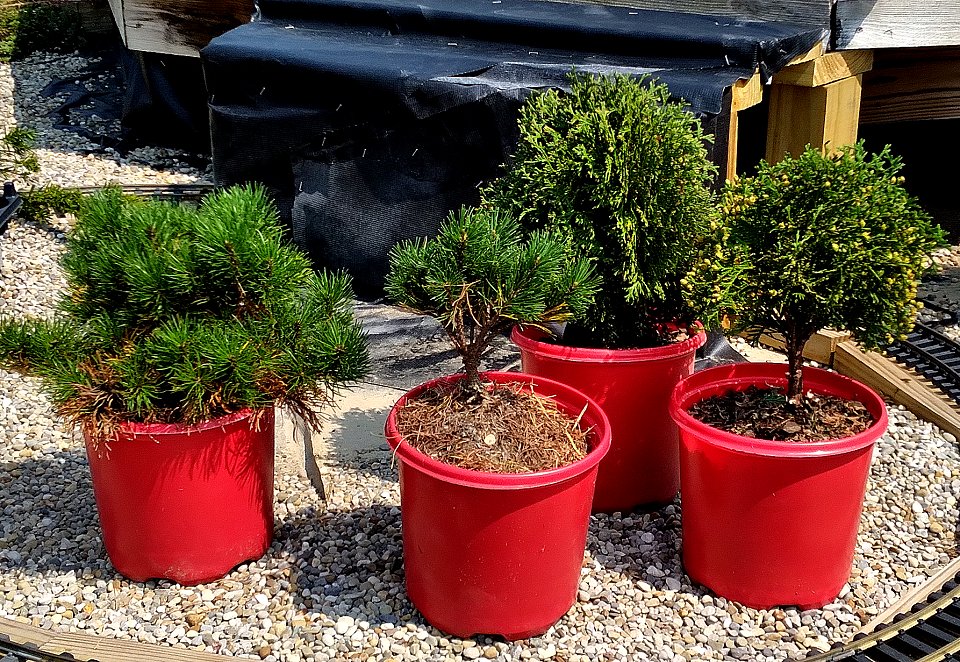

The photo to the right shows two Mugo Pines and two Hetz Midgets. The little skinny ones started out looking almost exactly like the fat ones, except that they've been trimmed down to one trunk.

Based on past experience, both trees should more-or-less hold their shape for years with relatively little trimming - that is, if I can keep them alive until winter. The Mugo Pine may tend to grow faster, and can shoot next year's starts straight up from the existing branches, which can look funny, so it's slightly higher maintenance.

Right now, though, I'm just focusing on keeping both plants alive until they've had a chance to adapt to their new environment. In August, in Ohio, that mostly means keeping the soil from drying out too much.

"Mountain" on East Platform

The photo to the right shows the "mountain" on the east platform with two trees planted. If you click on it to see the "blowup," you'll also see lots of Sedum starts poked into the cracks between the stones. The tiny green things on the top of the mountain are Acre Sedum starts.

Acre Sedum is one of my favorites - in the right conditions it can make a nice "shag carpet" effect that can stand in for a meadow's growth. If you allow larger Sedums to compete with it directly, though, it will lose out.

Because the top of the new 'mountain' is nearly as high as the middle platform, I could eventually consider making that part of the "farm scene" behind it. Or at least put kids playing there or some such.

"Mountain" on West Platform

I subsequently built up the mountain over the tunnel on the west platform. For the top of that platform, I chose one of the Jeanne's Dilly Spruce that I got on an after-Christmas sale and two "Soft Touch" Japanese Holly (Ilex crenata) that I bought from Meijers this spring.

The photo to the right shows two of the Hollies, one as it came from the nursery and one trimmed down to a single trunk. This cultivar is an experiment for me - I like the fact that it can be trimmed to look like a deciduous tree but is advertised as an evergreen.

The Jean's Dilley (shown further down) had been neglected when I received it, and I realized that it had two trunks. If the tree survives, and I can keep other branches from competing with the trunk, it should recover a nice cone shape.

The photo to the right shows the mountain I build over the tunnel on the west platform. It was a little bigger than the other mountain, and the top was a little higher, so it occurred to me to make the very top level with the platform above it and place a building there.

The POLA building I placed there was a literal "placeholder" to see how the concept would work. The base for the building, however, will be relatively permanent. It is a 2"x8"x12" concrete "stepping stone," the sort I use wherever it will fit. In fact, most of the buildings on the upper levels are sitting on them.

You can't tell because I allow the Sedum to overgrow the edges, something that I expect to happen in this area as well.

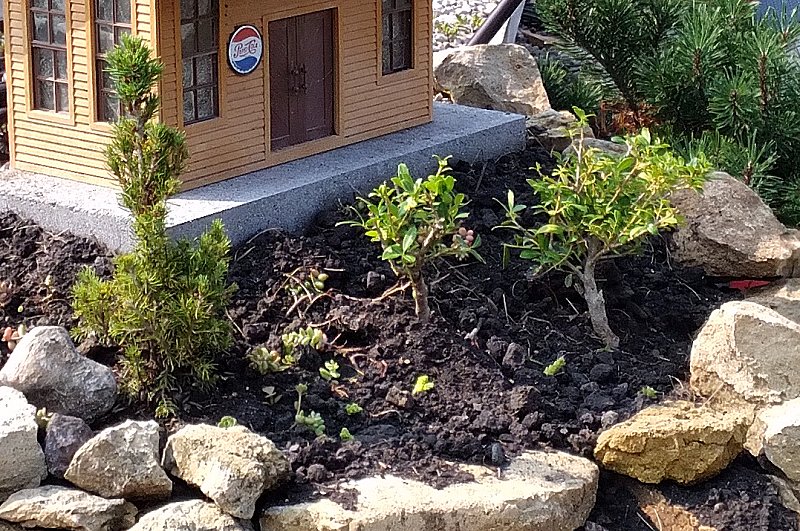

The photo to the right shows a closeup of the trees planted on the second "mountain" - the beleagured Jean's Dilly Spruce and two "Soft Touch" Japanese Hollies that have been trimmed to one trunk.

Frankly, I expect the Hollies to grow faster than the Spruce, but they shouldn't be hard to keep in a nice shape. Again, all that depends on me keeping them alive until cold weather sets in.

Next Steps

The tunnels still don't have their portals. I wanted to finish lugging big rocks around before I put them in place. But also, the lumber at the end of the tunnels is too irregular to attach them directly. So I'll probably attach them to a piece of wood or such, and attach that to the lumber. We'll see.

Keep in Touch

If you're headed toward or past Springfield, Ohio, please let me know, and I'll see if we can work out a quick visit.

Finally, please let us know about your ongoing projects. Ask questions, send corrections, suggest article ideas, send photos, whatever you think will help you or your fellow railroaders. In the meantime, enjoy your trains, and especially enjoy any time you have with your family in the coming weeks,

Paul Race

FamilyGardenTrains.com
