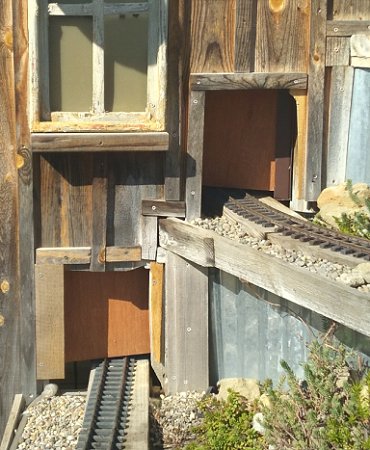

Portals and vertically sliding doorways being tested on our raised platform railroad.  The door installation was inspired by raccoon incursions, but we figured it was time to install the tunnel portals we had painted some time back.  Both installations are preliminary.  Click for bigger photo. Garden Railroading Primer Articles: All about getting a Garden Railroad up and running wellGarden Train Store: Index to train, track, and other products for Garden Railroading
Large Scale Starter Sets: Begin with a train you'll be proud to runBest Choices for Beginning Garden Railroaders: a short list of things you're most likely to need when starting out
Large Scale Track order FormSturdy buildings for your garden railroad.
Large Scale Christmas Trains: Trains with a holiday theme for garden or professional display railroads.Free Large Scale Signs and Graphics: Bring your railroad to life with street signs, business signs, and railroad signs
Garden Railroading Books, Magazines, and Videos: Where to go to learn even more
Collectible Trains and Villages: On30 Trains and accessories designed by Thomas Kinkade and others

Written by Paul D. Race for Family Garden TrainsTM


Please Read: How to Help Our Site at No Cost to You - Some of our articles contain recommendations for products we like and vendors we personally trust. Some of those vendors may pay us a very small commission if you click on a link and buy their products. This costs you nothing at all and helps offset the costs of what we do. So if we point you to something you decide to buy later, please make certain you come back through our site and click on the link directly. Thanks.

This Site is a Cookie-Free Zone - Except for discussion forums that you have to expressly registor for, none of our pages use cookies of any kind. Some of the vendors we link to do, but that won't affect you unless you click on a link to their pages. Your continued use of this page indicates that you agree to our policy. For details, click here.





























































































































Doors and Portals

This article will talk briefly about a raccoon incursion that led me to add doors and portals on some of the trains' entrances to our train shed/station.

Holes and Tunnels - In 2018, I built a train shed on one end of the two-level railroad I built in 2017. Tracks on both levels ran through the train shed, so I could leave short trains on the track and power them up whenever we had visitors. Between 2019 and 2020, I built a lower, larger level whose tracks ran through the shed as well.

In 2021, I constructed two small tunnels that didn't connect to the train shed, but allowed small loops of track for short trains, rail trucks, etc. to hide briefly. Building up 'mountains' on my raised railroad to allow short trains on small loops to go through tunnels.  Click to see article

Afterward, I built up dirt-and-rock "mountains" on the lower level, to make the "tunnels" I built look more natural.

At that time, I bought eight foam portals that were originally made by Isle Laboratories (makers of Mountains in Minutes). I installed four of them on the two new tunnels.

What about the other openings - the Installing Isle portals on four of my tunnel entrances in 2021.  Click to go to article.ones the trains passed through to go to the train shed? I didn't install the portals at the same time, since I run longer pieces of equipment on those tracks, and I would have to be very precise in the portal placement to keep the trains from hitting the portals.

Also, until this year, I never any animals to speak of invading that space. Occasionally a sparrow would fly in, poop, and fly out. Plus the occasional brown wasp nest. But nothing more threatening than that.

Vermin Incursion - But this year, I had the pleasure of finding one of my customized trains on the train shed floor, as well as raccoon poop all over the railroad. Ooops.

When I built the train shed, I didn't make provision for closing the openings. And there was certainly no way to attach hinged doors or the like now.

But what about "doors" that would slide up and down?

Alluminum F channel for attaching soffits to buildings that are going to be vinyl sided.  Click for bigger photo.What would I use for rails? I searched for a while and finally settled on a kind of "F channel" that is used for attaching soffit to buildings that are going to be sided with vinyl.

Because I wanted to enclose at least the four lower openings at this time, I bought two lengths of the F channel (they're 12' long, so don't take your Civic to the store for these).

I also had a circular saw blade for cutting sheet metal, left over from when I used corrugated steel sheets for other remodeling projects. I'm sure a hacksaw would do as well or better.

Each opening was 11" or less high, so I cut the F channel into 24" pieces.

The F channel installed behind one of the train shed openings. I had more vertical posts in this shed than you'd usually find, but getting all the F channel installed was still 'challenging.'  Click for bigger photo.Because I built the train shed around the existing platforms, and not from "scratch," there were more posts and studs than you'd ordinarily find in a shed that was built "normally."

My plan was to fasten the F channel to the posts and or to the studs closest to the openings.

Because the posts are all ground-rated, I screwed the F channel in place with short screws designed to work in modern pressure-treated wood. This required some finangling in some cases. That said, folks without as many posts and studs as my shed has would have to finagle something as well.

Also, in most cases, the channel is 3" or so from the wall of the shed, so the openings are still unprotected from cold air or small animals. But hopefully large animals like raccoons will be discouraged.

I could pop some more wood scraps in place to make the openings more secure, but that's pretty far down the list as of this writing. Don't worry; at the rate these things go, someone who reads these articles and decides to build everything in a more logical sequence will eventually do this better and write an "original" article showing you how he did it.

The F channel is supposed to hold 3/8" soffit securely. Which means that a 3/8" board won't really slide up and down. So a purchase of 1/4" plywood is probably in my future.

In the meantime, I had some beadboard scraps from an old project, and I cut them to size. Every opening had a different width, of course.

The following photos show the beadboard scraps in place from the inside and outside. When I get the plywood, I will cut the bottom profile to fit over the track and roadbed more securely. And probably paint it black. Maybe with a sticker or wood-burned representation of a locomotive front or caboose rear. Again - down the list. :-)

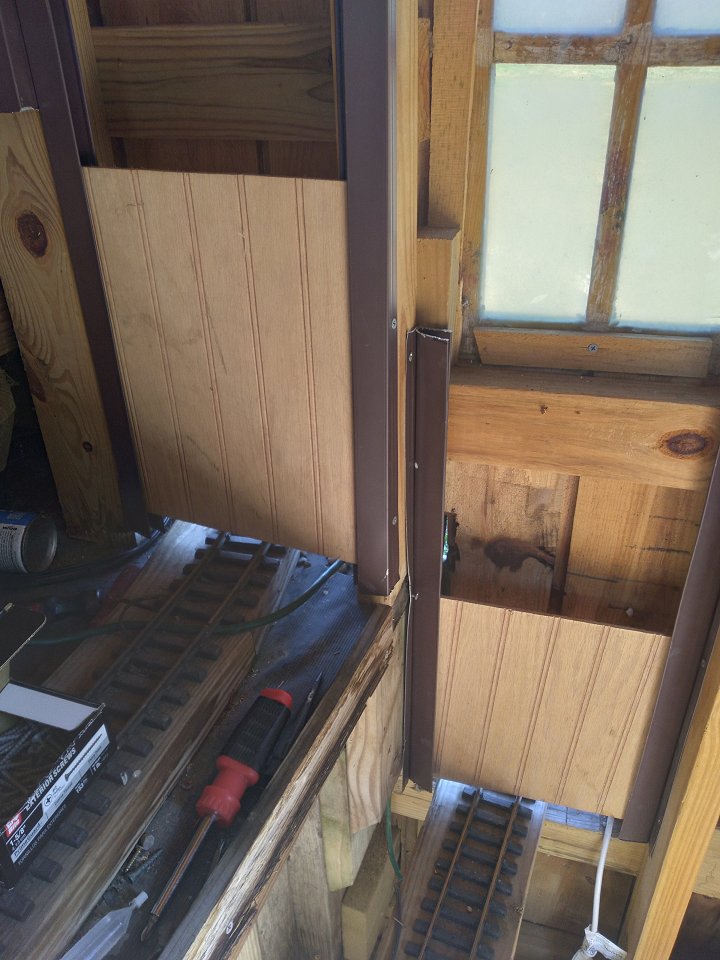

Two of the 'doors' slid into place as seen from the inside. Click for bigger photo. Two of the 'doors' slid into place as seen from the outside.  Click for bigger photo.

You'll see that the wood frame around the lower opening has been built out in one place and cut back in another. That's because I was also trying to figure what it would take to put the portals on once the doors were in place.

Portal Installation - I had already painted the portals I was going to use, as described in this blog. Masking tape, rust primer, and gray primer were involved, in case you don't want to click on yet another link. Plus using a lot of very light coats to begin with and allowing plenty of time to dry between. Otherwise, the propellant and the solvent in the spray paint will melt the styrofoam. In fact, I got one portal a bit "iffy" in one place, but not so most folks would notice.

I put the portals on with long screws designed to work with modern pressure-treated wood (again, some of the frame is ground-rated lumber). Yes, you can see the screws, but I'll touch them up later.

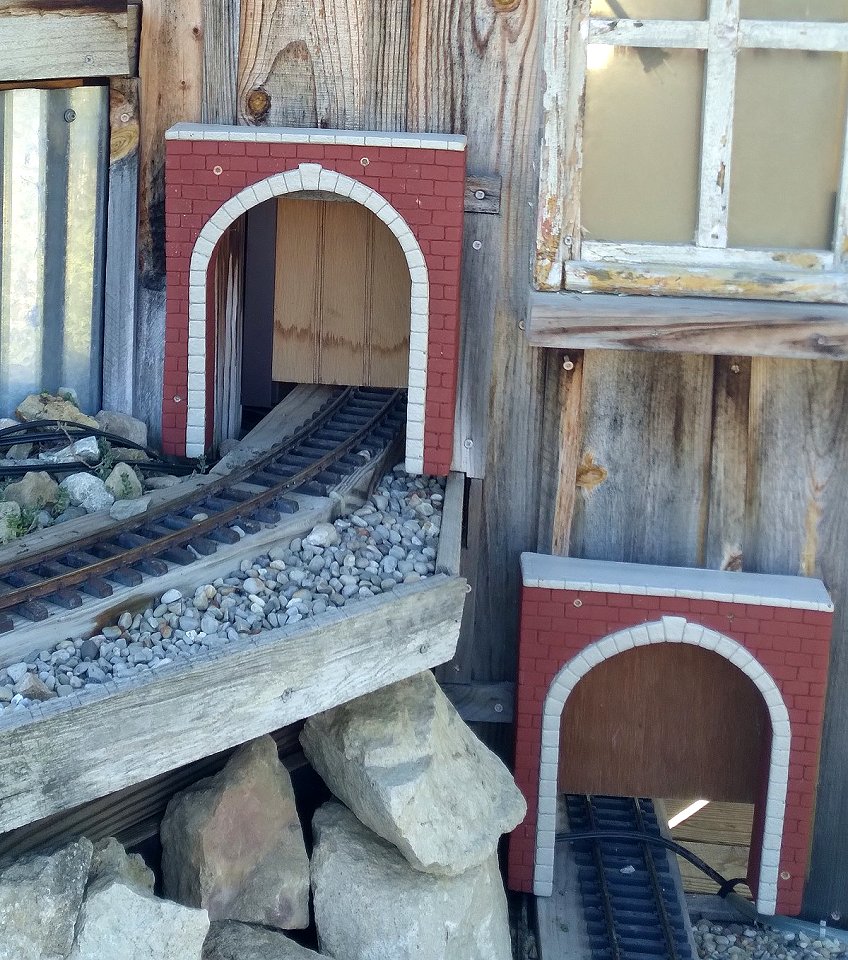

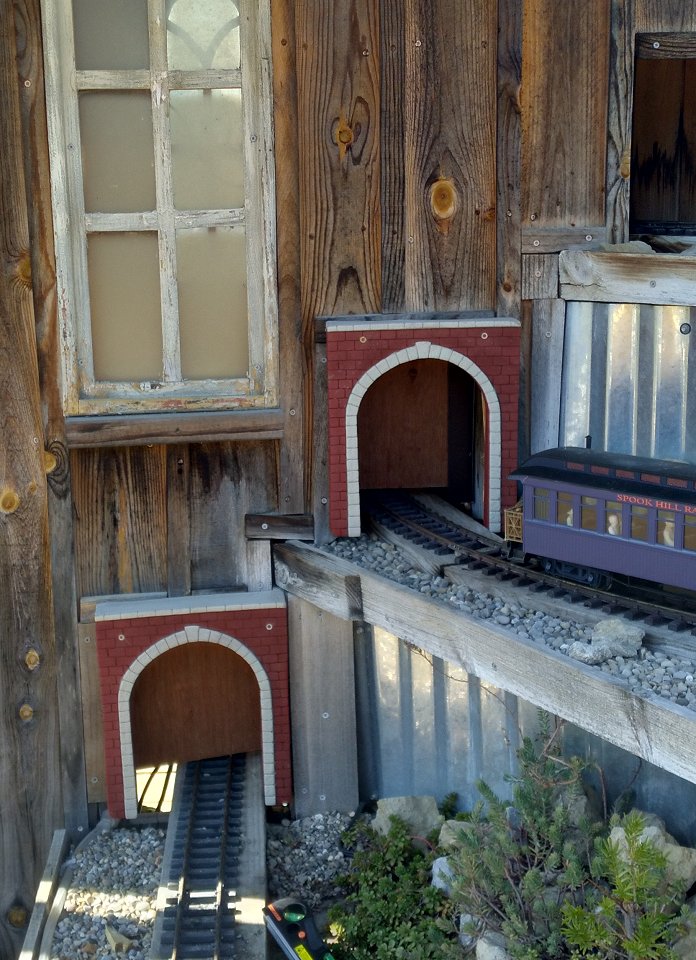

Two of the openings on the east side of the shed with portals and vertically sliding doors in place.  Trim, touchup, and other adjustments to come.  Click for bigger photo. Two of the openings on the west side of the shed with portals and vertically sliding doors in place.  Trim, touchup, and other adjustments to come.  Click for bigger photo.

The portals also don't go all the way to the "ground," but I'll camouflage that with rocks eventually. I wanted to make certain that taller-than-average pieces would still run. And, to be honest, I sometimes run the wires for my building lighting out the tunnel holes, buried under rocks or gravel once it's in place. I had a more elaborate solution - running wires everywhere before I "dirtscaped" the railroad. But, frankly, the ends of most of those wires had become impossible to find by the time I went looking for them.

In addition, the two top openings are not protected yet. They will probably never get model portals because the trains on that 5'-diameter track go into the building at an angle. I believe I can add sliding doors, but I will have to do them a little differently for the same reason.

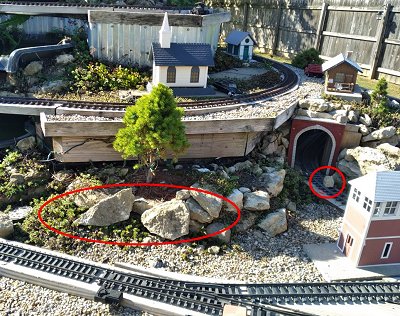

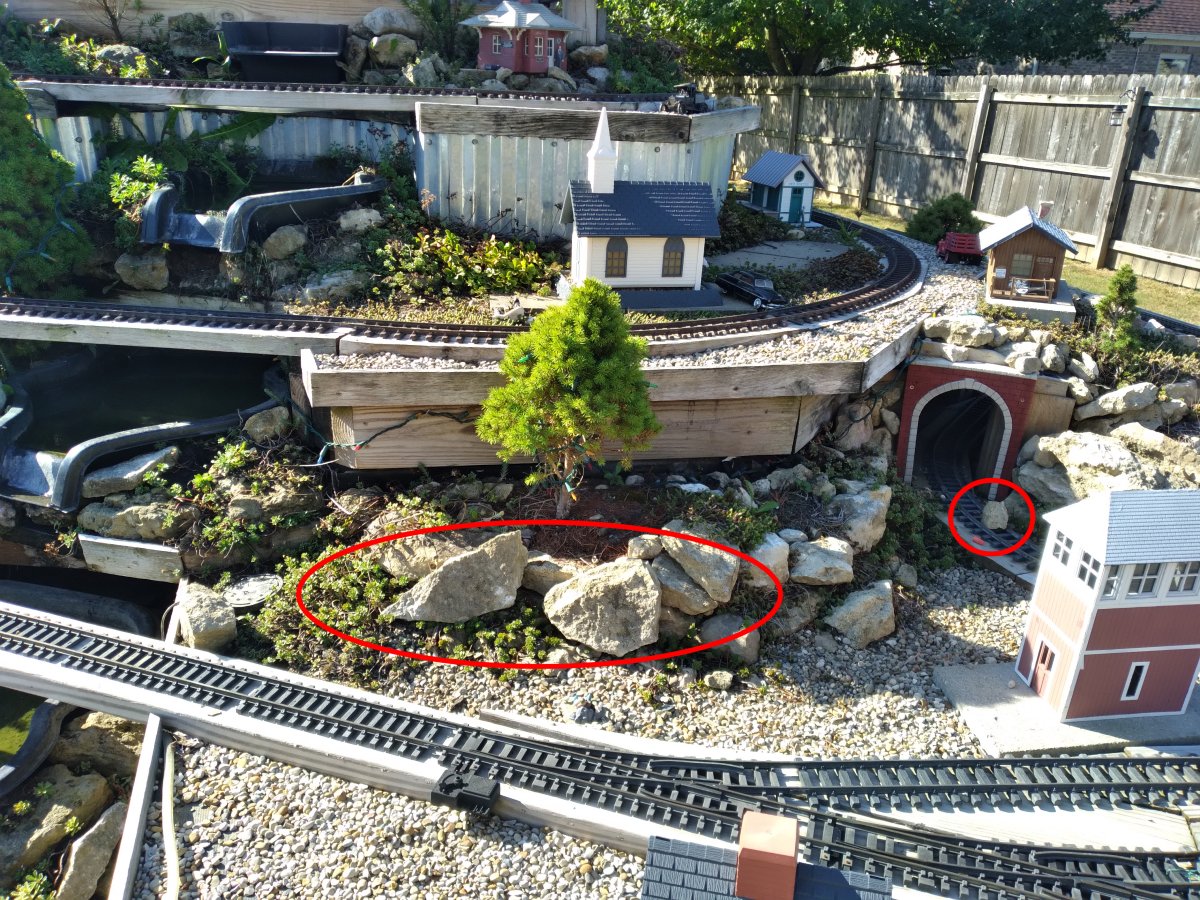

Four of the dozen or so rocks that the raccoon has pulled out of place looking for snacks.  Now when I'm going to run my trains, I have to make certain there aren't any boulders on the track.  Click for bigger photo. That said, the flimsy, ill-fitting sliding doors I have in the slots now seem to have discouraged the raccoon from entering the train shed and throwing my trains on the floor.

Now if I could just discourage him from pulling my "mountains" apart looking for heaven-knows-what. Not to mention grabbing figures and relocating them around the railroad.

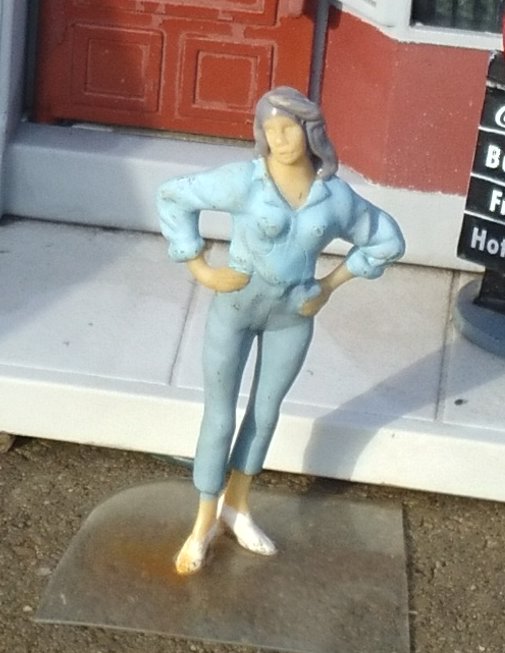

One of the cheap Asian figures of a blue-jeaned woman with arms akimbo seems to be his favorite. I never know where I'm going to find her, but she is always covered in mud when she turns up. Don't ask me.

Yes, I have a trap. Hoping that he'll get discouraged and try his luck elsewhere before that is necessary.
